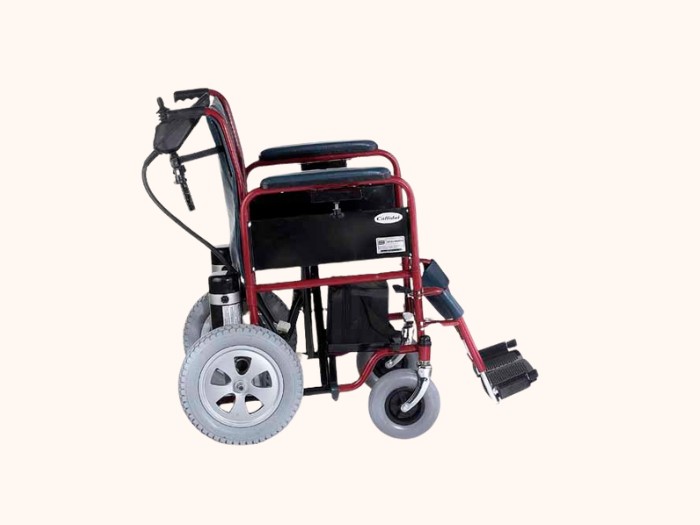

Overview - Ganda 2K4 Attendant Drive Wheelchair

Battery Powered, Joystick Operated Wheelchair

• This Attendant wheelchair has the attendant drive option so that the attendant can operate the wheelchair (Can be provided for all types of Powered wheelchairs).

---

Technical Specifications

2 x 320Watt 24V PMDC Motor

Multi-Speed – Multi-Direction Joystick Controller

6 Amps – (under normal conditions)

24V (2 x 12 V), 18Ah VRLA Batteries in Series

Fully Foldable/ Detachable Frame with detachable Batteries

9.0 Kmph Can be decreased to 6.0 Kmph if required

Electronic Circuit Braking

2 hours for minimum charge; 12 hours for full charge

2.00 Amps DC @ 24VDC (50 Watts)

18 months - depending on usage (appx. 300 Recharge Cycles)

1.5 Hours non-stop or 12.0 Kms - sufficient for a full day

100 Kgs (Maximum permissible weight – 120 Kgs)

Geared Transmission with reduction to the 2 Rear Wheels

Wheel Lock / unlock for manual propulsion by Attendant
