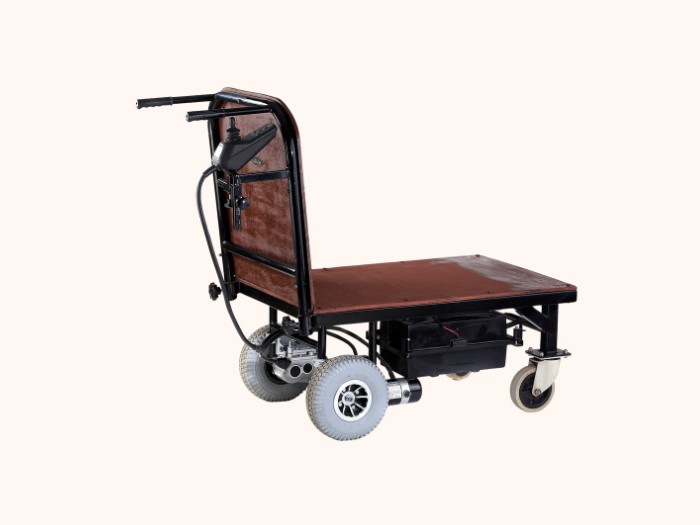

Overview - Sumai 250 and Sumai 500

Motorised Platform Trolley for loads upto 500 Kgs

• Ideal for use in Godown and Warehouses
• Makes it absolutely easy to move loads from one place to another
• Sumai 250 is designed for moving 250 Kgs and Sumai 500 can move 500 Kgs

---

Technical Specifications

Permanent magnet DC 2 x 320W for Sumai 250 and 2 x 500W for Sumai 500

Speed – Multi-Direction Joystick Controller

VRLA Batteries (Fully Sealed Zero Maintenance) 3 x 12V 17Ah for Sumai 250 and 3 x 12V 26Ah for Sumai 500

5 to 8 Kmph Maximum with Master Control for Max Speed restriction

10 Kms per full charge for both models (non-stop)

10 Hours for a full charge – 2 Hours for a quick charge

Less than 2 Amps @ 36V for Sumai 250- about half unit per charge
Less than 4 Amps @ 36V for Sumai 500– about one unit per charge

Spray painted Mild Steel Frame with 18 swg Sheet Metal Platform

Push or Pull type (Interchangeable) – Reverse movement is possible

600mm x 900mm (2’ x 3’) OR 900mm x 1200mm (3’ x 4’)

10” x 4.0” Hard Rubber Fixed Wheel and 8” x 2” Castors
