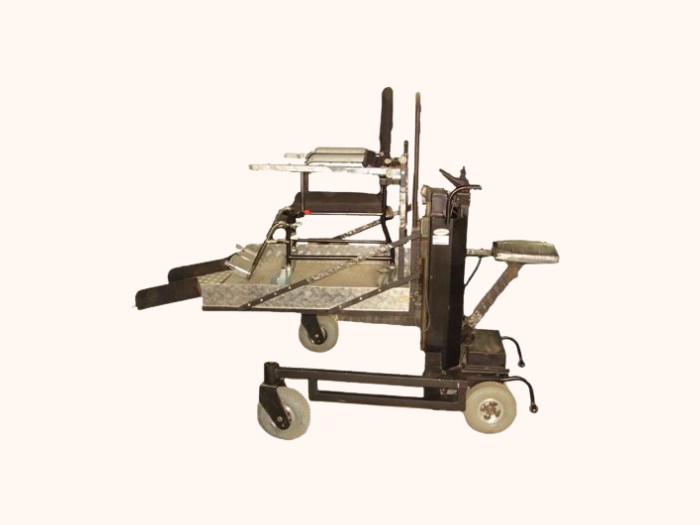

Railway Passenger Wheelchair Lift
₹ 2,95,000GST: 18%
Overview - Railway Passenger Wheelchair Lift
1. Completely Motorised Wheelchair Lifting System to haul wheelchair bound persons into
Railway coach while seated on the wheelchair. (*Can also be used for getting into bus.)
2. Passenger Lift provided with a manual wheelchair.
Overall Dimensions
Total Length
84 Inches
Total width
44 Inches
Maximum Height
64 Inches
Total Travel of the platform
22 Inches
Platform Dimension
Total Length
38 Inches
Total width
32 Inches
Length with bridge
57 Inches
Length without Bridge
49 Inches
Technical Specifications
Motor
2 x 500 Watt 24 VDC Permanent Magnet
Lift Control
Multi-Speed – Multi-Direction Joystick Controller
Battery
24V (2 x 12 V), 42Ah VRLA Batteries in Series
Maximum speed
9.0 Kmph can be decreased to 6.0 Kmph if required
Brakes
Electronic Circuit Braking
Recharging time with Charger
2 hours for minimum charge; 12 hours for full charge
Charger Current (Continuous)
2.00 Amps DC @ 24VDC (50 Watts)
Replacement of Battery
18 months (appx.300 Recharge Cycles)
Mileage per charge
1.5 Hours non-stop or 30 Kms - sufficient for a full day
Maximum weight of Driver and passenger
220 Kgs (Maximum permissible weight – 120 Kgs)
Drive (Transmission type)
Geared Transmission with reduction to the 2 Rear Wheels
Manual operation
Wheel Lock / unlock for manual propulsion by Attendant
Total Travel of the Platform
22 Inches
Wheels
10” x 2” Castor wheel 4nos
