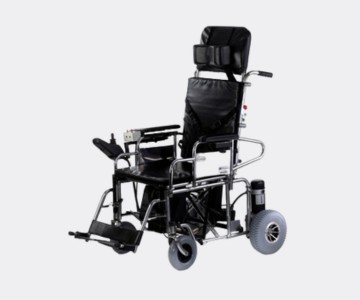

Rear Wheeldrive Powered Wheelchair With Manual Reclining Backrest And Elevating Footrest
₹ 1,06,000GST: 5%
Overview - Ganda 2K4 Manual Bed Wheelchair
Battery Powered, Joystick Operated Wheelchair
- Manual Bed Wheelchair is ideal for Wheelchair Users who need to go to the reclining position often for general relief
- Back rest Reclining and Foot rest Elevation is completely Manual Function
- Individual Manual backrest reclining/foot elevation or combined operation can be provided
Technical Specifications
MOTOR
2 x 320 Watt 24 VDC Permanent Magnet
Wheelchair Control
Multi-Speed – Multi-Direction Joystick Controller
Cruising Current
6 Amps – (under normal conditions)
Battery
24V (2 x 12 V), 17Ah VRLA Batteries in Series
Frame
Fully Foldable/ Detachable Frame with detachable Batteries
Maximum speed
9.0 Kmph can be decreased to 6.0 Kmph if required
Brakes
Electronic Circuit Braking
Recharging time with charger
2 hours for minimum charge; 12 hours for full charge
Charger current(continuous)
2.00 Amps DC @ 24VDC (50 Watts)
Replacement of battery
18 months - depending on usage (appx. 300 Recharge Cycles)
Mileage per charge
1.5 Hours non-stop or 12.0 Kms - sufficient for a full day
Maximum weight of Rider
100 Kgs (Maximum permissible weight – 120 Kgs)
Drive (Transmission type)
Geared Transmission with reduction to the 2 Rear Wheels
Manual operation
Wheel Lock / unlock for manual propulsion by Attendant
