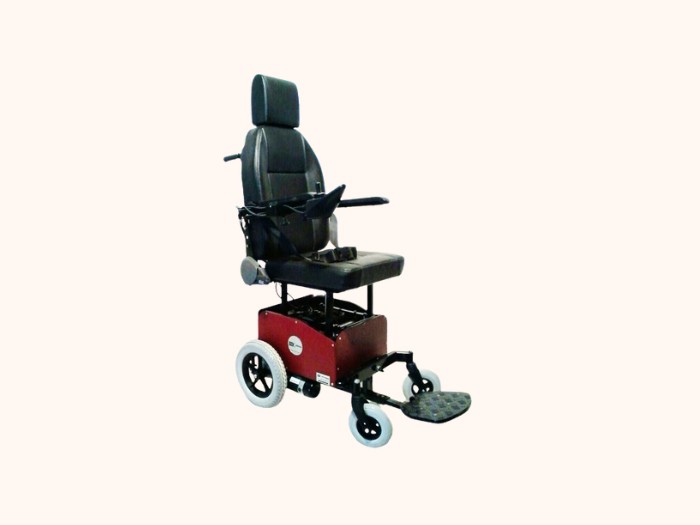

Deluxe - Rear wheeldrive Powered Wheelchair With Seat Powered Updown Mechanism
₹ 1,53,500GST: 5%
Overview - Deluxe Powered Seat Up/Down Wheelchair
Battery Powered, Joystick Operated Wheelchair
- This Wheelchair features a Powered (Motorized) Lifting Seat which can lift the User by 12 inches
- This assists in Transfers from wheelchair to car / van and bed
Technical Specifications
MOTOR
2 x 320 Watt 24V PMDC Motor
Wheelchair Control
Multi-Speed – Multi-Direction Joystick Controller
Cruising Current
6 Amps – (under normal conditions)
Battery
24V (2 x 12 V), 18Ah VRLA Batteries in Series
Frame
Fixed frame
Maximum speed
9.0 Kmph can be decreased to 6.0 Kmph if required
Brakes
Electronic Circuit Braking
Recharging time with charger
2 hours for minimum charge; 12 hours for full charge
Charger current (continuous)
2.00 Amps DC @ 24VDC (50 Watts)
Replacement of battery
18 months - depending on usage (appx. 300 Recharge Cycles)
Mileage per charge
1.5 Hours non-stop or 12.0 Kms - sufficient for a full day
Maximum weight of Rider
100 Kgs (Maximum permissible weight – 120 Kgs)
Drive (Transmission type)
Geared Transmission with reduction to the 2 Rear Wheels
Manual operation
Wheel Lock / unlock for manual propulsion by Attendant
Actuator
24 V, 1.5A, 300mm stroke
