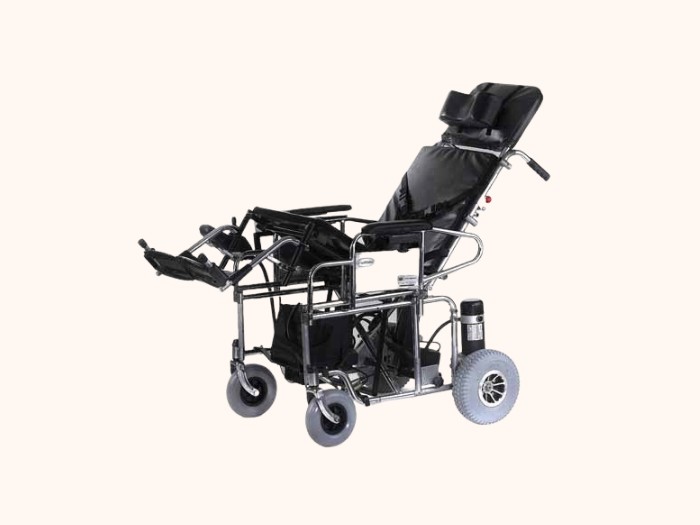

Overview - Ganda 2K4 Reclining And Tilt-In Space Wheelchair

Manual and Battery Powered and joystick operated Wheelchair

• Recline feature provide a change in orientation by opening the seat-to-back angle and, in combination with elevating leg rests, reduced stress at the back
• Tilt-in space feature provides a change of orientation and thus redistributes pressure from one area (e.g., the buttocks and posterior thighs) to another area (e.g., the posterior trunk and head) and maintains physical angles at the hips, knees, and ankles

---

Technical Specifications

2 x 320 Watts 24V PMDC

Multi-Speed – Multi-Direction Joystick Controller

6 Amps – (under normal conditions)

24V (2 x 12 V), 18Ah VRLA Batteries in Series

Fully Foldable/ Detachable Frame with detachable Batteries

9.0 Kmph can be decreased to 6.0 Kmph if required

Electronic Circuit Braking

2 hours for minimum charge; 12 hours for full charge

2.00 Amps DC @ 24VDC (50 Watts)

18 months - depending on usage (appx. 300 Recharge Cycles)

1.5 Hours non-stop or 12.0 Kms - sufficient for a full day

100 Kgs (Maximum permissible weight – 120 Kgs)

Geared Transmission with reduction to the 2 Rear Wheels

Wheel Lock / unlock for manual propulsion by Attendant

24 V, 2 A, 150 mm stroke
