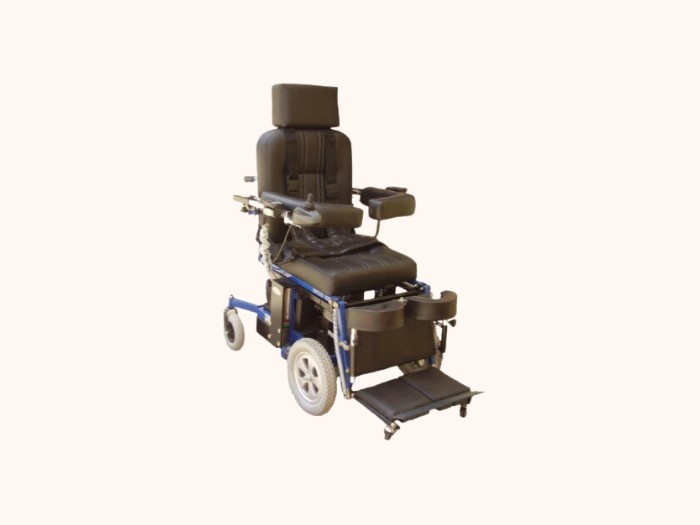

Overview - Stand-Up Wheelchair

Battery Powered, Joystick Operated Wheelchair

• Seating is provided with Powered reclining back rest and Elevating Footrest with stand-up option
• The Base frame is completely covered with a shell

---

Technical Specifications

2 x 320 Watt 24V PMDC Motor

Multi-Speed – Multi-Direction Joystick Controller

6 Amps – (under normal conditions)

24V (2 x 12 V), 18Ah VRLA Batteries in Series

Fixed Frame

9.0 Kmph can be decreased to 6.0 Kmph if required

Electronic Circuit Braking

2 hours for minimum charge; 12 hours for full charge

2.00 Amps DC @ 24VDC (50 Watts)

18 months - depending on usage (appx. 300 Recharge Cycles)

1.5 Hours non-stop or 12.0 Kms - sufficient for a full day

100 Kgs (Maximum permissible weight – 120 Kgs)

Geared Transmission with reduction to the 2 Rear Wheels

Wheel Lock / unlock for manual propulsion by Attendant

24 V, 2 A, 150 mm stroke
