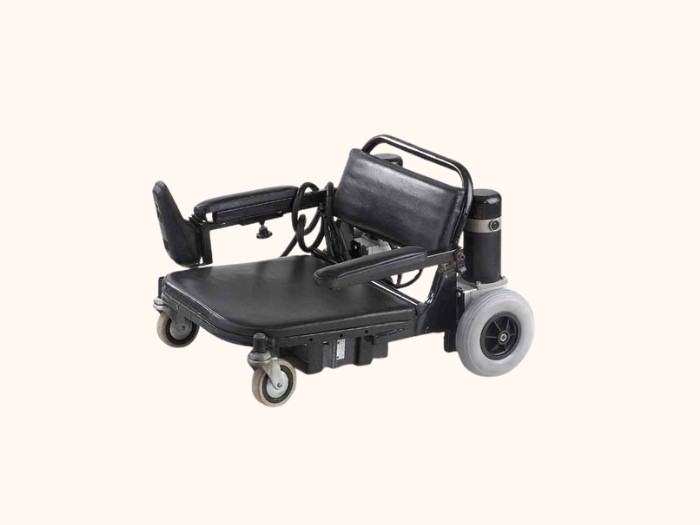

Overview - Ganda 2K4 - Ground Mobility Device

Battery Powered, Joystick Operated Wheelchair

• This Powered Wheelchair stands just 6 inches from the floor and is useful for persons who are either Heavy or do not have assistance at home to be lifted on to a regular wheelchair.
• Would be very useful for persons working in factories and for use indoor, would also be useful for people who crawl.

---

Technical Specifications

2 x 320 Watt 24 PMDC Motor

Multi-Direction Joystick Controller

6 Amps - (under normal conditions)

24V (2 x 12 V), 18Ah VRLA Batteries in Series

9.0 Kmph can be decreased to 6.0 Kmph if required

Electronic Circuit Braking

2 hours for minimum charge; 12 hours for full charge

2.00 Amps DC @ 24VDC (50 Watts)

18 months - depending on usage (appx. 300 Recharge Cycles)

1.5 Hours non-stop or 12.0 Kms - sufficient for a full day

100 Kgs (Maximum permissible weight – 120 Kgs)

Geared Transmission with reduction to the 2 Rear Wheels

Wheel Lock / unlock for manual propulsion by Attendant

2 INCH from the ground
