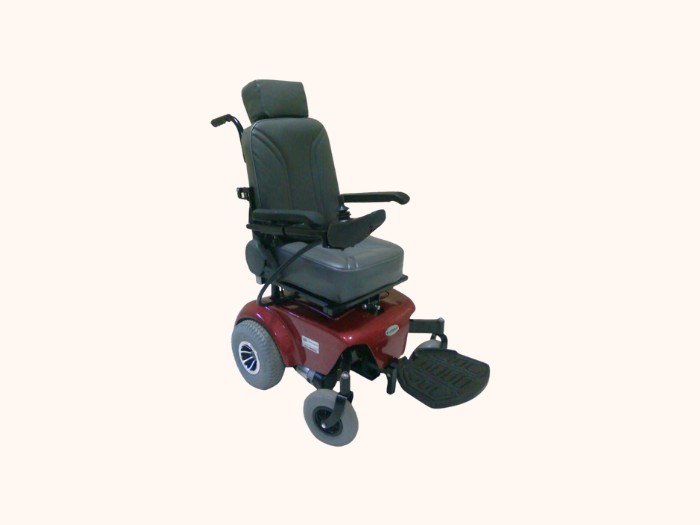

Overview - Deluxe Pediatric Wheelchair

Battery Powered, Joystick Operated Wheelchair

• Rear Wheel Drive for use Indoor and on Paved Surfaces
• The base frame is completely covered with a shell
• Deluxe wheelchair comes with Bucket seat which provides high comfort level to the users
• Pediatric wheelchairs are mobile aids designed for and used by children

---

Technical Specifications

2 x 320 Watt 24V PMDC Motor

Multi-Speed – Multi-Direction Joystick operated

9 Amps – (under normal conditions)

24V (2 x 12 V), 18Ah VRLA Batteries in Series

9.0 Kmph can be decreased to 6.0 Kmph if required

Electronic Circuit Braking

2 hours for minimum charge; 12 hours for full charge

2.00 Amps DC @ 24VDC (50 Watts)

18 months - depending on usage (appx. 300 Recharge Cycles)

1.5 Hours non-stop or 12.0 Kms - sufficient for a full day

Maximum permissible weight – 200 Kgs

Geared Transmission with reduction to the 2 Rear Wheels

Wheel Lock / unlock for manual propulsion by Attendant

Length - 17” Width – 15” Height – 26”
