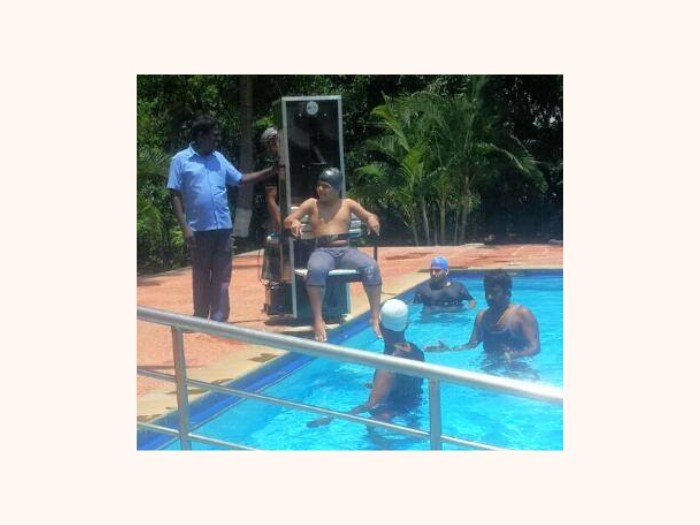

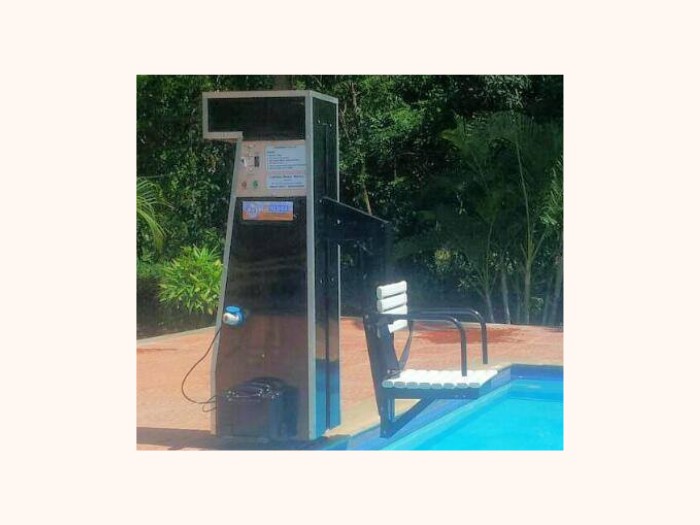

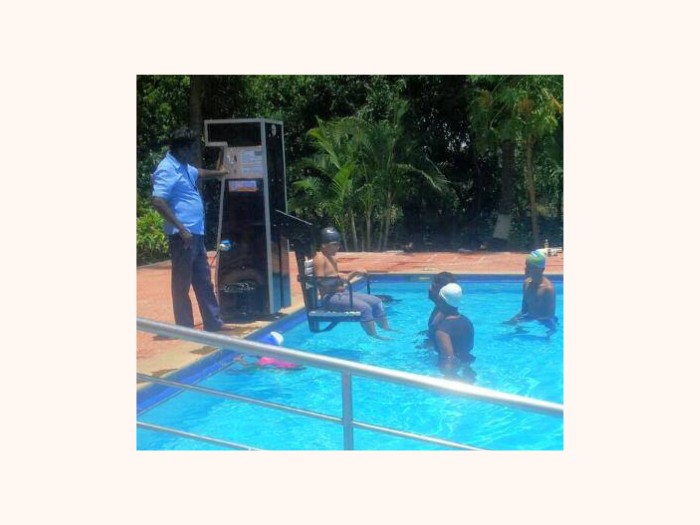

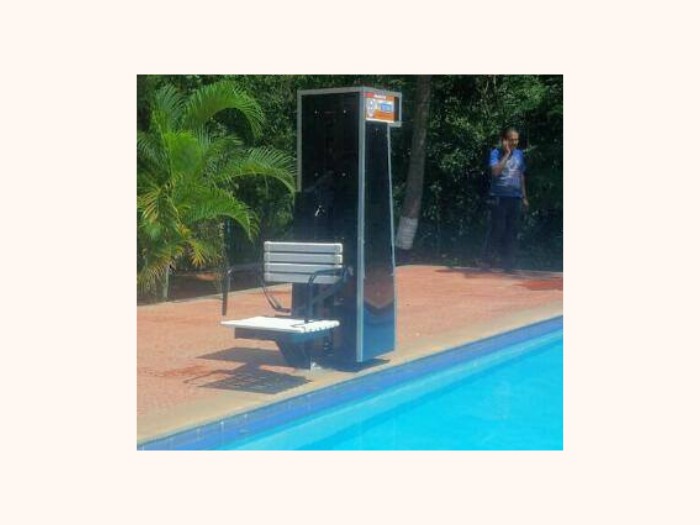

Swimming Pool Lift
₹ 2,25,000GST: 5%
Overview
Fully Motorised Pool Lift with Manual Override
- Completely conforms to ADA Standards
Technical Specifications
Maximum User Weight
150 kgs / 330 lbs
Maximum lowering / Lifting Speed
1.00 inch per second
Mechanism
Rotating Ballscrew with moving Nut with Hand cranked Manual Override
Automatic
Automatic limit switch controlled High and Low level switch off
Motor
320W, 24V, 120RPM, PMDC Motor
Operating Current
10Amps
Battery
Rechargeable 24V 9Ah Lithium LiFePo4 Battery with key
Frame
Complete Stainless Steel (304 Grade) Frame with Powder coated finish
Seat
Long life Plastic
Base
Motorised Swivel 240 Degrees (with maual override) with option of permanent grouting or with wheels
Base Turning speed
2 RPM or 8 seconds for a quarter turn for dismounting / mounting
Switch
Water-proof switch set operable from outside and from water
Charger
On-board (Optional) or off-board charger with CCCV, Multi-stage charging (2Amps)
Armrest
Drop-down, Lift-up and detachable armrest in Powder coated stainless steel with adjustable width for user comfort
Footrest
Swing away (Part of seat) in powder coated aluminium
Total lifting height
50 inches
Under water
20 inches
Maximum Height
80 inches
