Powered Standup Wheelchair - Sitting Position To Standup
₹ 1,56,500GST: 5%

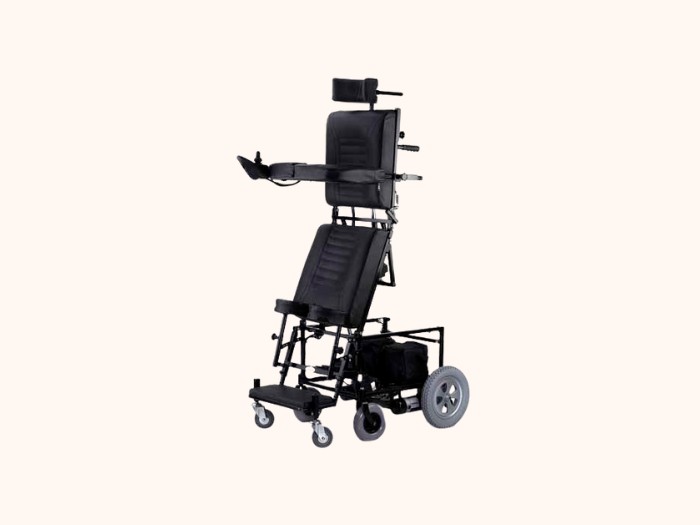

Overview - Ganda 2K4 Stand-Up Wheelchair
Battery Powered, Joystick Operated Wheelchair
- This Fully Powered (Joystick operated) Stand up wheelchair, besides providing Joystick operation while moving from one place to another.
- Also features an independent powered recline and independent powered footrest elevating mechanism.
- The Stand up function happens from a total flat (lying down) posture of the User rather than from a sitting posture.
- The Stand up function will not work unless the Backrest is totally flat and the footrest is fully elevated.
- Also the Backrest and footrest functions will not function when the Stand up mechanism is in operation.
Technical Specifications
MOTOR
2 x 320 Watt 24 PMDC Motor
Wheelchair Control
Multi-Speed – Multi-Direction Joystick Controller
Cruising Current
6 Amps – (under normal conditions
Battery
24V (2 x 12 V), 18Ah VRLA Batteries in Series
Maximum speed
9.0 Kmph can be decreased to 6.0 Kmph if required
Brakes
Electronic Circuit Braking
Recharging time with charger
2 hours for minimum charge; 12 hours for full charge
Charger current (continuous)
2.00 Amps DC @ 24VDC (50 Watts)
Replacement of battery
18 months - depending on usage (appx. 300 Recharge Cycles)
Mileage per charge
1.5 Hours non-stop or 12.0 Kms - sufficient for a full day
Maximum weight of Rider
100 Kgs (Maximum permissible weight – 120 Kgs)
Drive (Transmission type)
Geared Transmission with reduction to the 2 Rear Wheels
Manual operation
Wheel Lock / unlock for manual propulsion by Attendant Actuators
24 V, 2 A, 150 mm stroke
