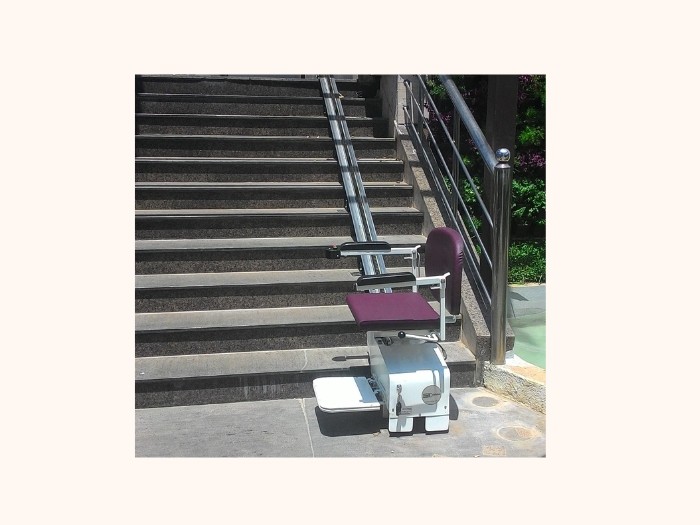

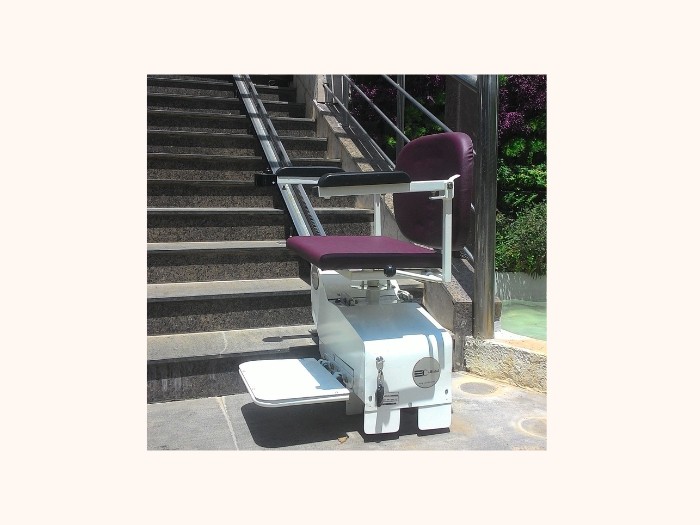

Overview - Outdoor Staircase Lift

Callidai “stairlift” is expertly designed and manufactured to the very highest standards. The Callidai “StairLift” is an electrically powered rack & pinion stairlift designed for domestic use.It is designed to carry not more than one person weighing 120 Kg.It’s the safe, comfortable and simple solution for persons who find it difficult to climb Stairs.

• Cushioned seat and backrest
• Easy to use control
• Secure safety belt
• Folding arms, footrest and seat allow easy access to the stairway
• Swivel seat – no need for twisting the body to get on and off the lift
• Lockable on/off switch allows the user to prevent others (eg.children) from using the lift
• Diagnostic audio signal informs the user of the status of the lift
• Users to ‘call’ or ‘send’ the stairlift by “Remote”

---

Dimensions in mm

• Width outside armrest - 810
• Width of backrest - 380
• Footrest to seat - 360
• Wall to carriage distance - 30
• Overall height from foot rest - 680
• Overall depth (folded) - 340
• Width inside armrest - 510
• Depth of seat - 410
• Required space width of stairs - 800
• Height of Backrest - 230
• Footrest surface to floor - 300
• Overall depth (footrest down) - 670

Technical Specifications

500W (Worm Geared) 24V PMDC Motor

Rack & Pinion

6.00 metres

Al.Angle with Nylon shoe

24V 7Ah VRLA

24V 2Amps

120 kgs

240v, 50Hz
